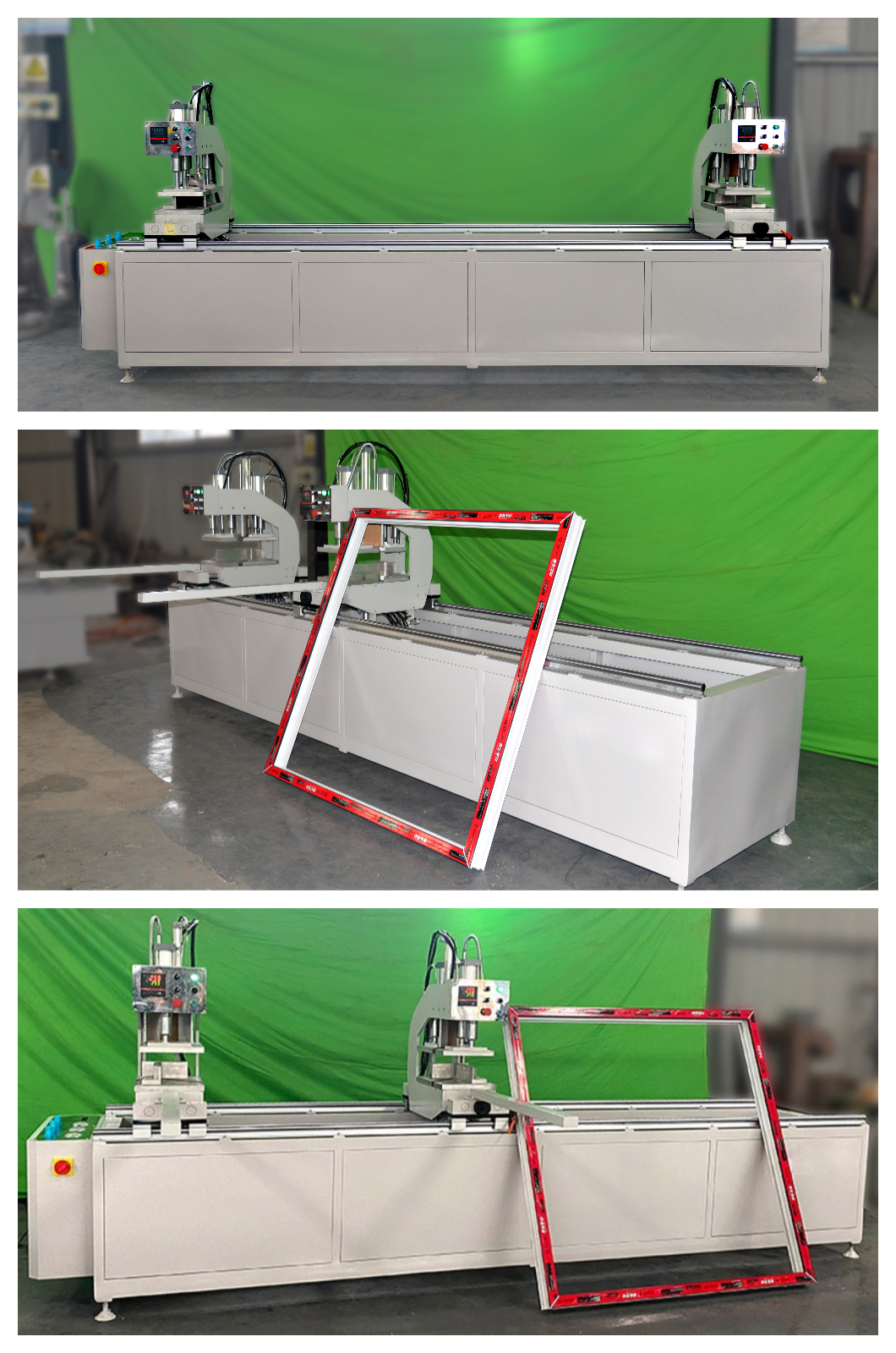

Two Head Welding Machine WDZ2-140*3500
Two Head Welding Machine WDZ2-140*3500
Function:
Used for corner and mullion welding of PVC profile.
Features:
lFour head can work separately or corporately, flexible combination.

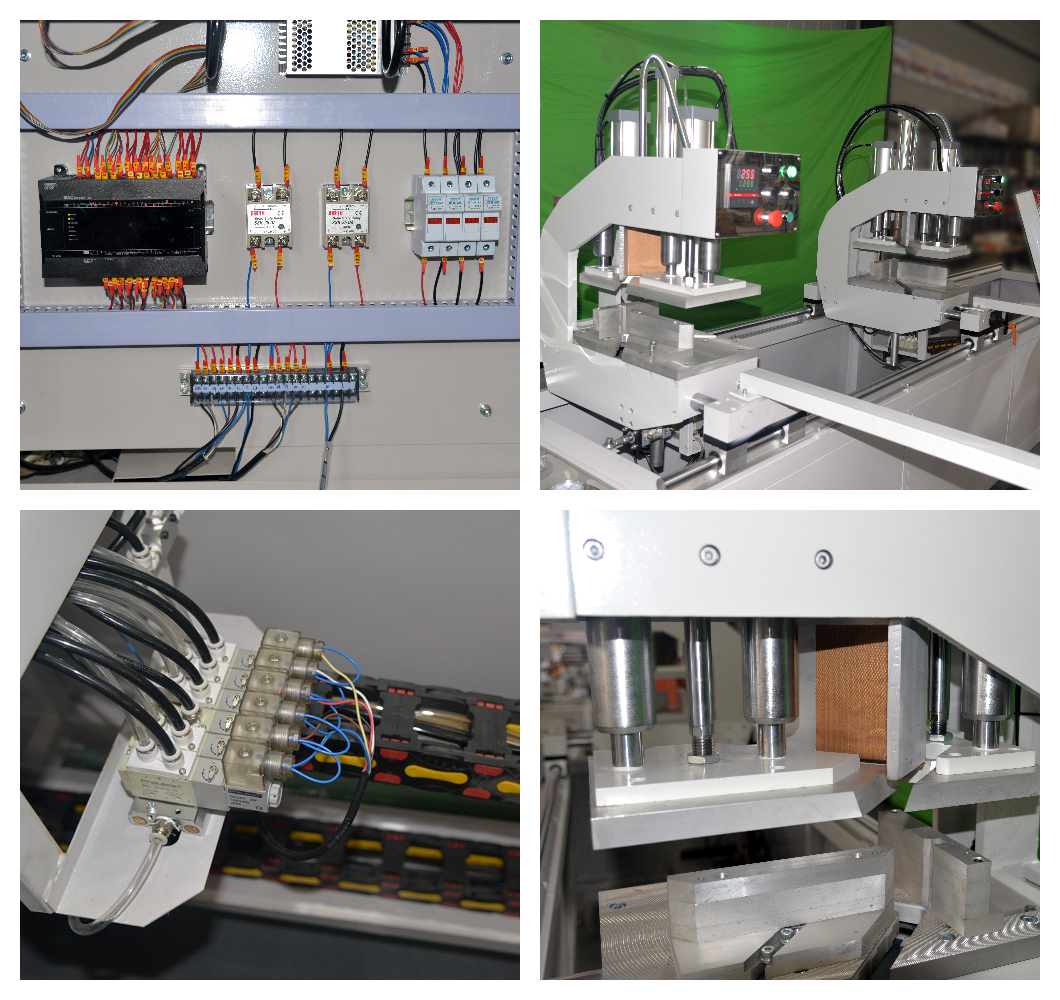

lPLC controls the welding action / program, high reliability.
lFree angle welding of right machine head.
lParameters can be set to meet various profiles processing requirements.
lHigh welding precision.
lAdopt high quality electrical and pneumatically components with high reliability.

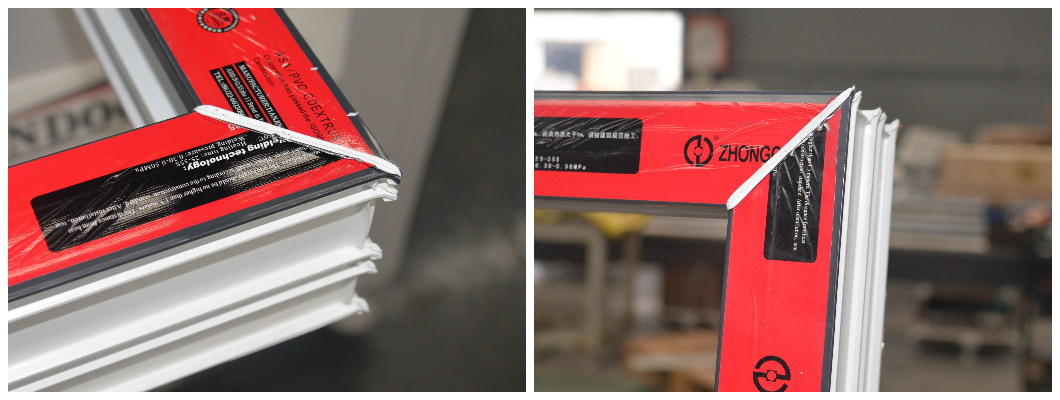

lGood welding corner appearance.
Parameter:
| Air Pressure | 0.6MPa~0.8MPa |
| Air Consumption | 60L/min |
| Input Voltage | 220V 50Hz |
| Input Power | 2.5KW |
| Welding Height | 20mm~140mm |
| Welding Width | 120mm |
| Welding Range | 400mm×400mm~3500mm×3500mm |
| Overall Dimension | 4400mm×1000mm×1700mm |
| Weight | 1080kg |
